AP330CTF-SNR66AY

Airmaster Propeller System

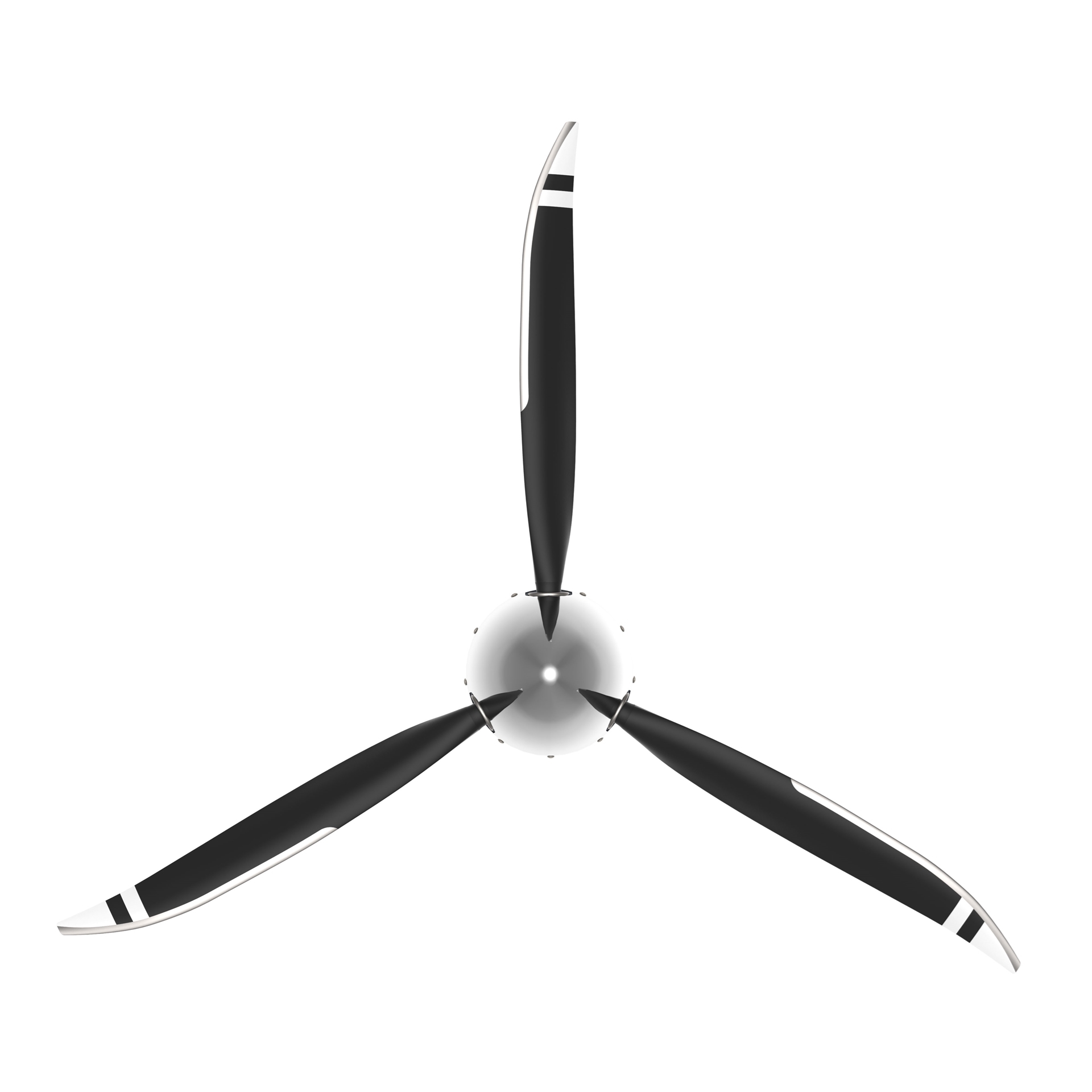

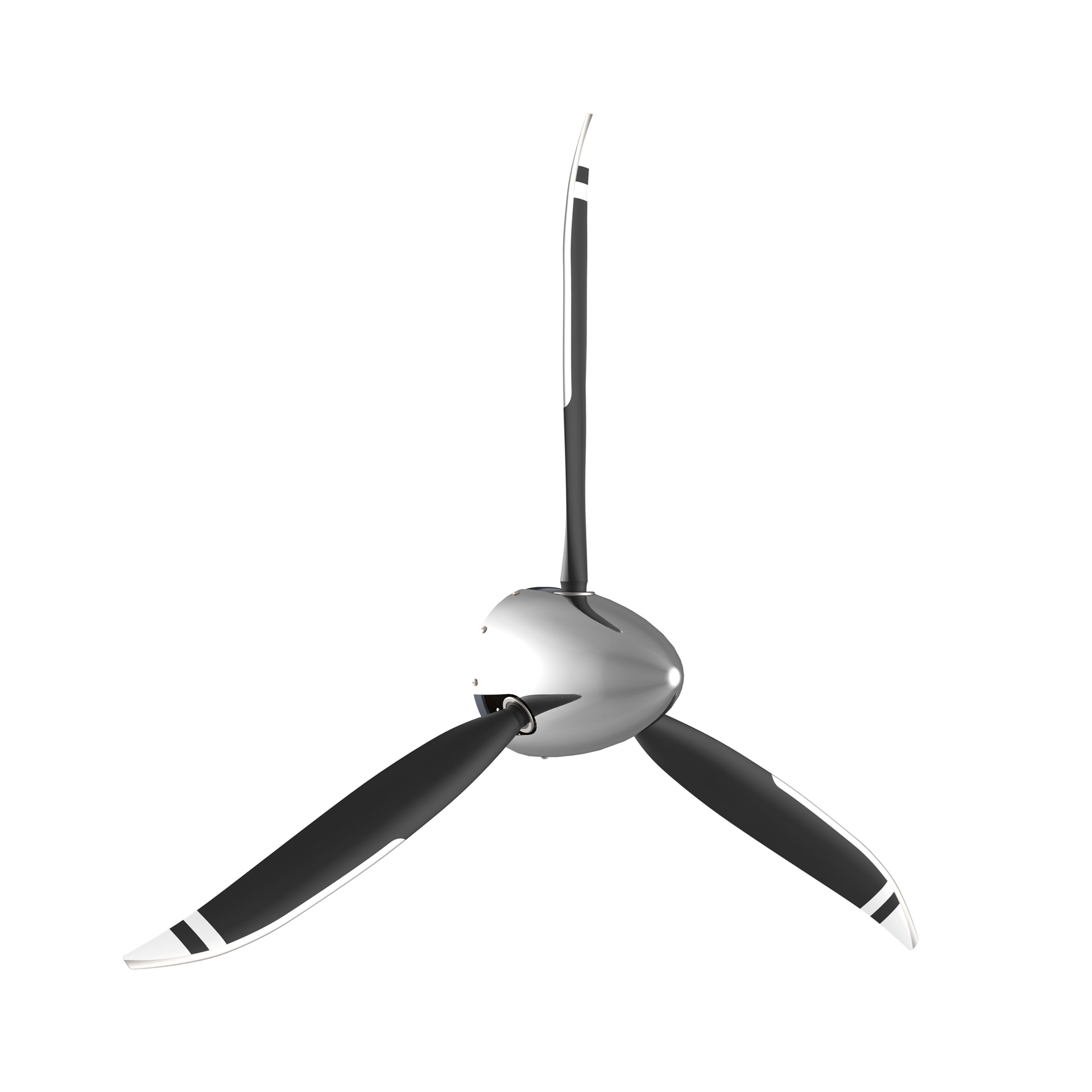

The AP330-SNR66AY is a three blade propeller for use on the Rotax 9 series of engine. Its configuration is clockwise / tractor with the addition of a feathering facility.

This propeller is particularly suitable for use on high-speed aircraft (125kts+).

The performance gain from the AP330 constant speed hub, combined with the high-speed characteristics of the Sensenich R65AY blade foil, allows outstanding performance for high speed aircraft.

Features include

Designed for Rotax 9 series engines
High strength AP330 CS hub with steel retention components
Fast response from high precision Maxon servo drive
High operating speed range from Sensenich AY series profile blades
Hard wearing composite blade construction with inlaid Stainless leading edge protection
Easy to use AC200F electronic governor/controller
Easy installation with a wide range of pre-made installation kits

Enquire

Power Capacity	Up to 115hp (89.5kW) on Rotax engines
Maximum Speed	2500rpm
Weight	Hub, Blades, Spinner	9.5kg (21lbs)
Controller	0.3kg (0.6lbs)
Moment of Inertia	~0.43 kgm^2
Engine Type	Rotax 912, 912S, 914 or similar
Mounting Flange	Rotax 4in [101.6mm] PCD with 13mm bush) 5/16” UNF bolts
Hub Type	AP330
Configuration	Clockwise, Tractor
Blade Type	Sensenich	R66AY
Extension	as required
Spinner	as required
Controllers	AC200F

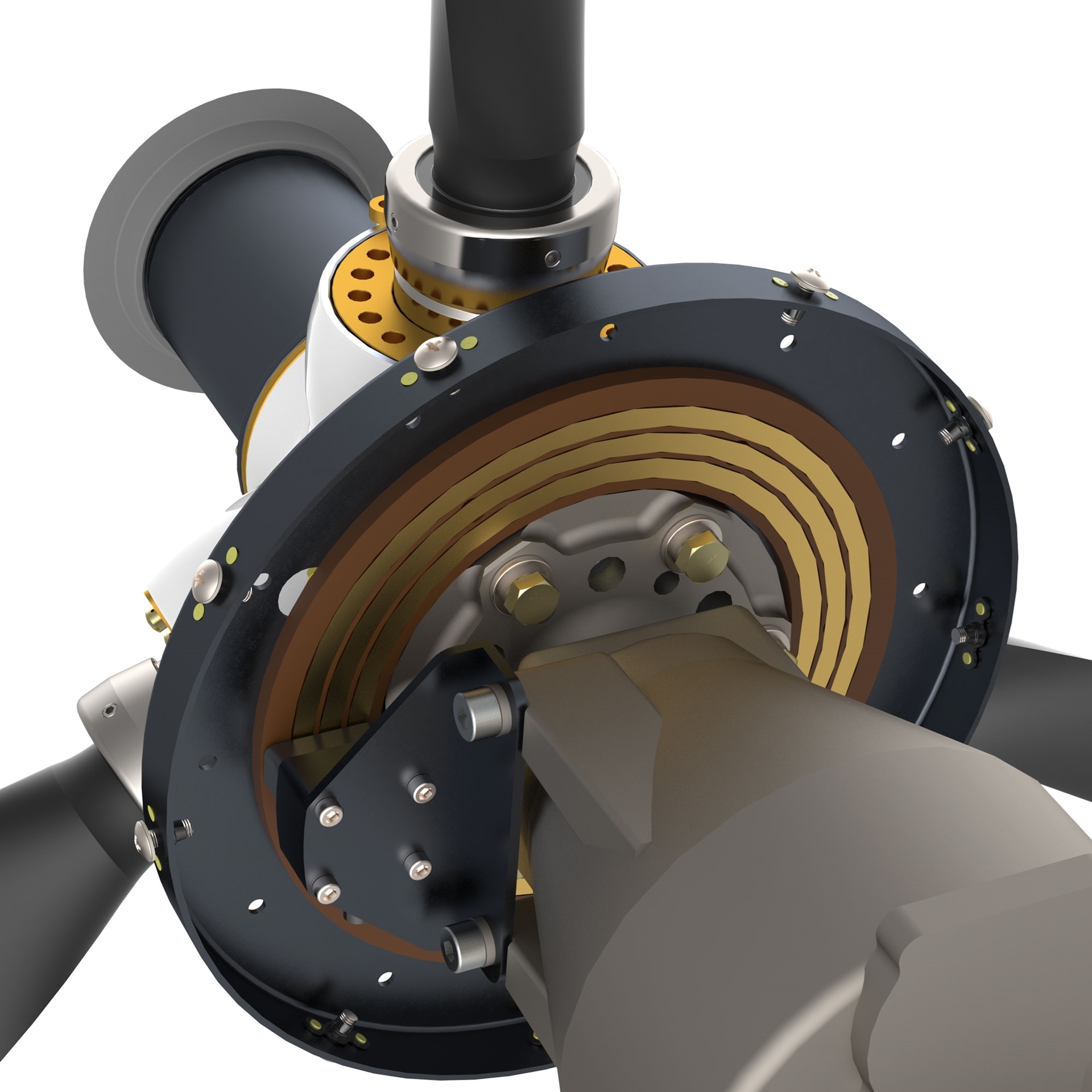

Slipring	Rotax mini (RM), Rotax standard (RS)
Loom Length	Loom Extension	59in (1.5m)
Brushblock	20in (0.5m)

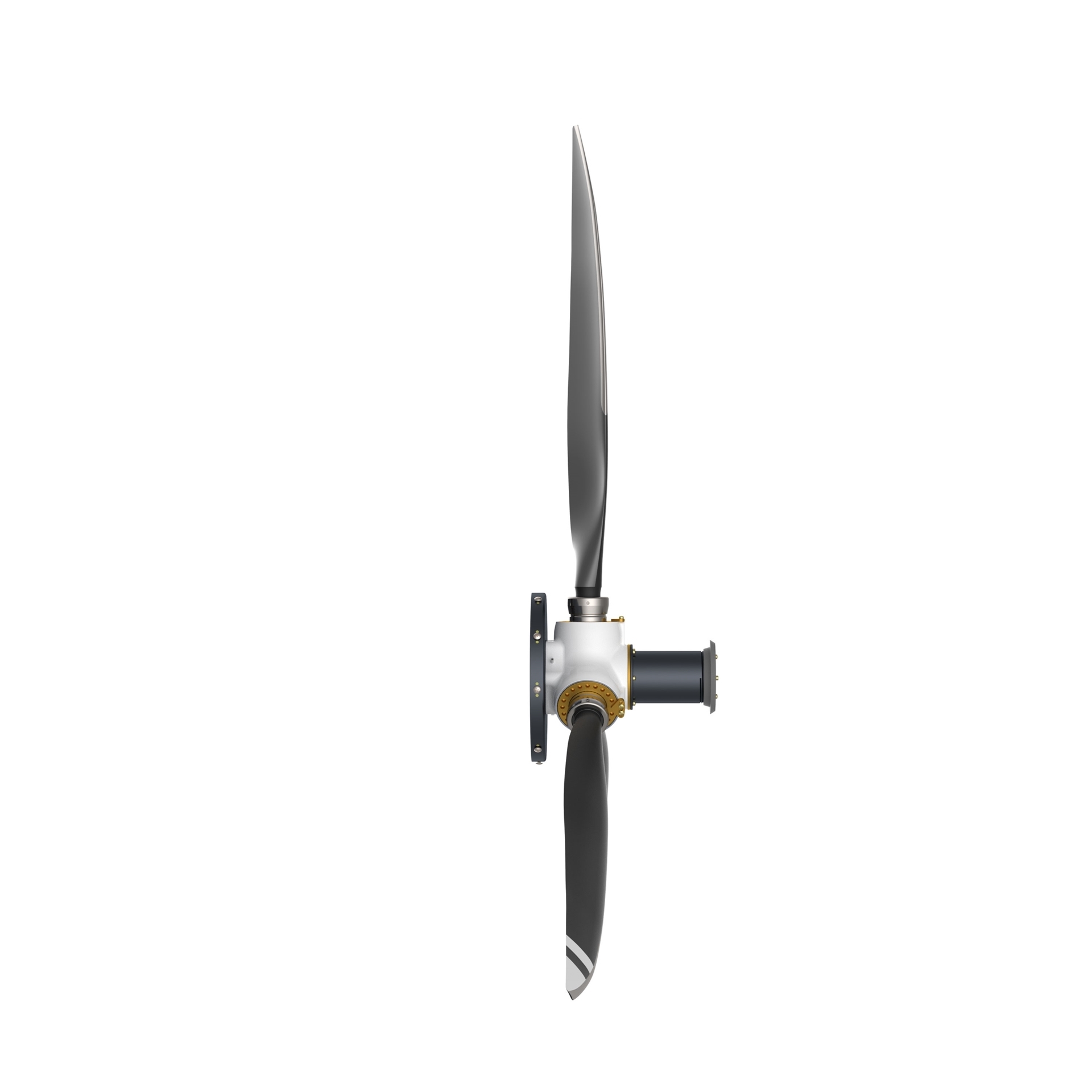

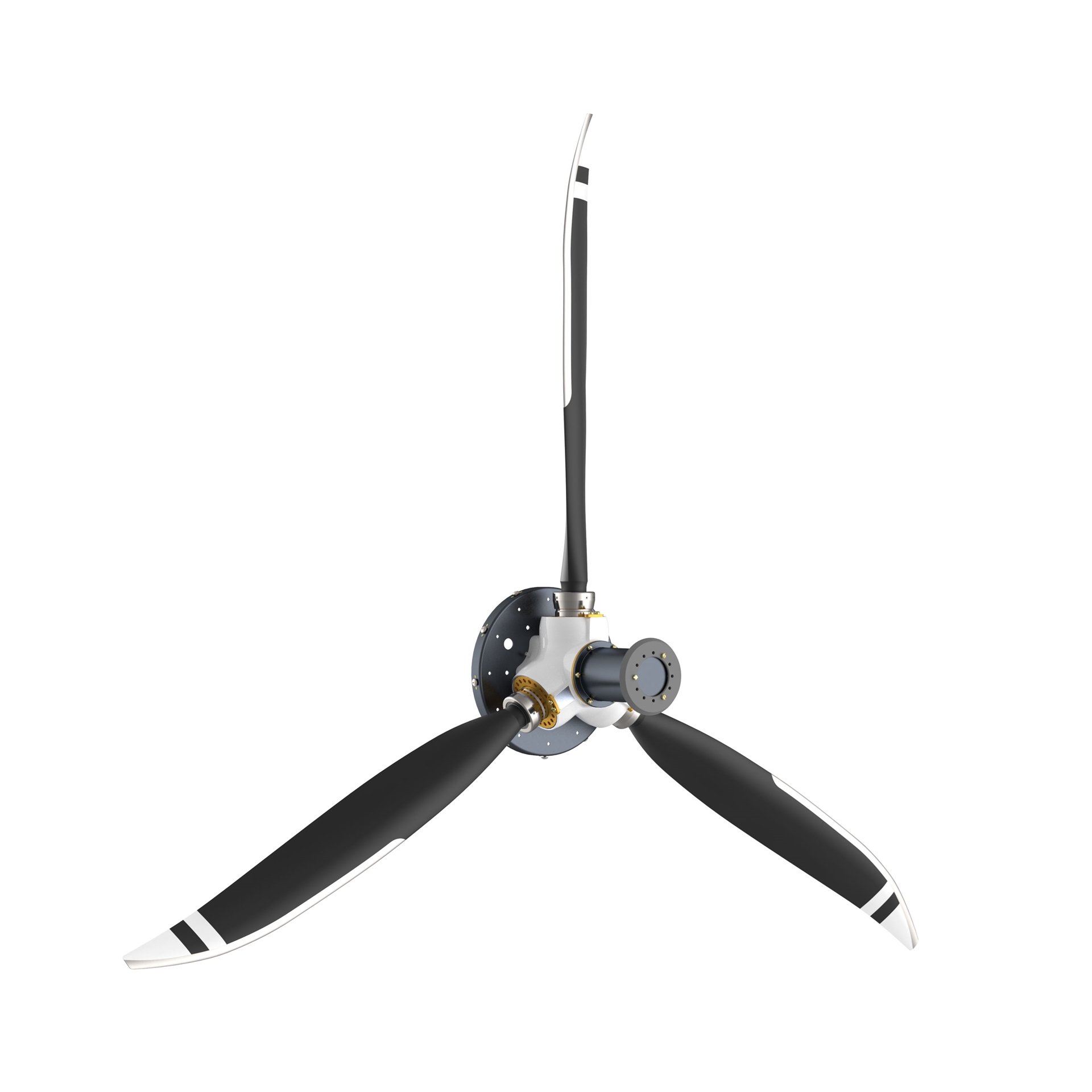

Precision Hub Mechanism At the heart of each Airmasterpropellerisahigh quality hub mechanism. The single piece hub shell and steel retention parts ensure the hub is lightweight and strong.Thehigh qualityaerospacematerialsusedthrought the hubensure a long life with superior fatigue resistance. High strength single piece shell Precision pitch change mechanism Durable steel retention components Fast and reliable electric PC motor
	Simple Operation The Airmaster propeller is extremely simple to operate thanks to the AC200 control system. The automatic management of the engine rpm is essential in reducing pilot workload during the critical phases of flight like landing and taking off. Easy selection of engine speeds for Take Off, Climb and Cruise Flexible speed selection using Hold function Precise speed regulation from solid state governor Clear pilot feedback of propeller operation Semi automatic 'Feather' function

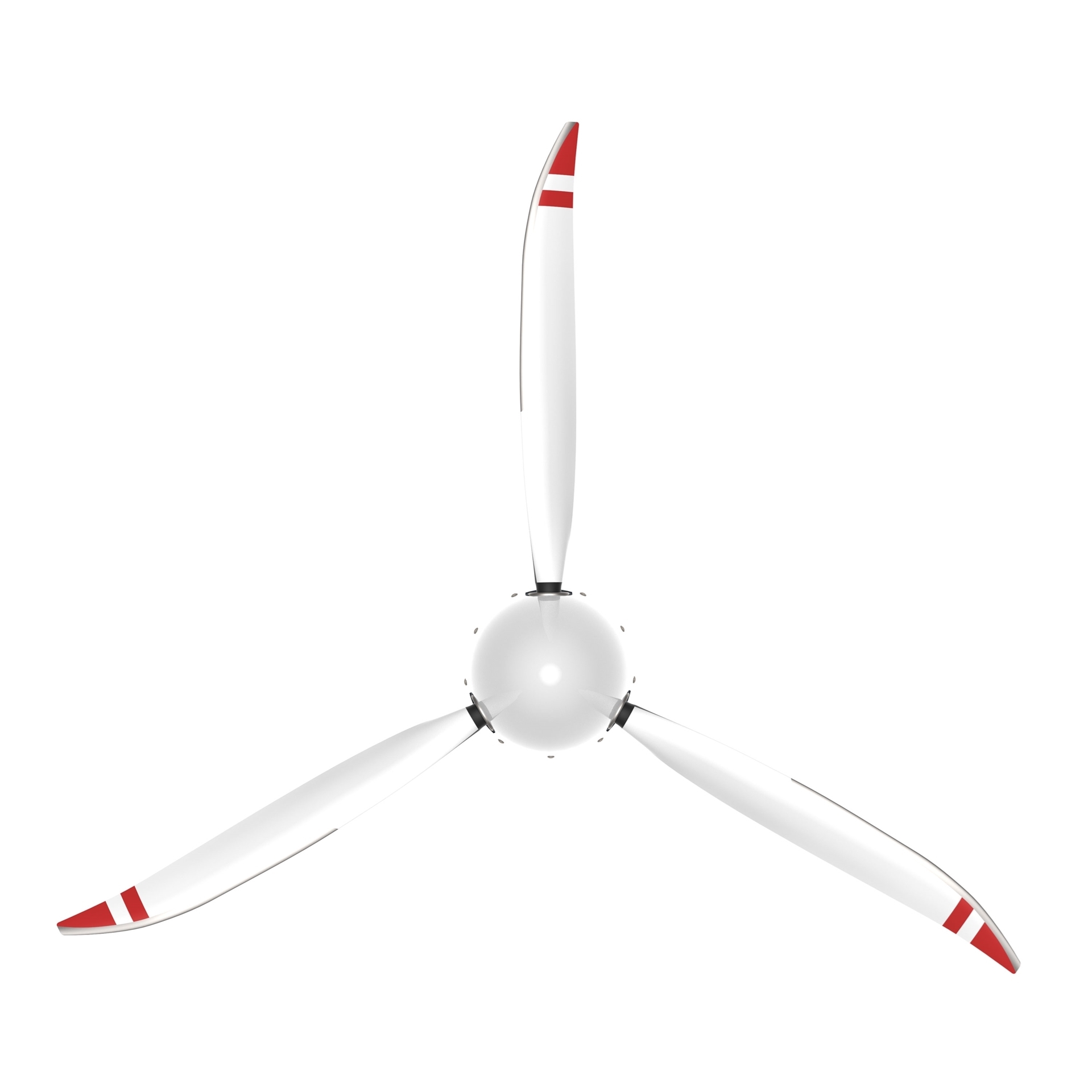

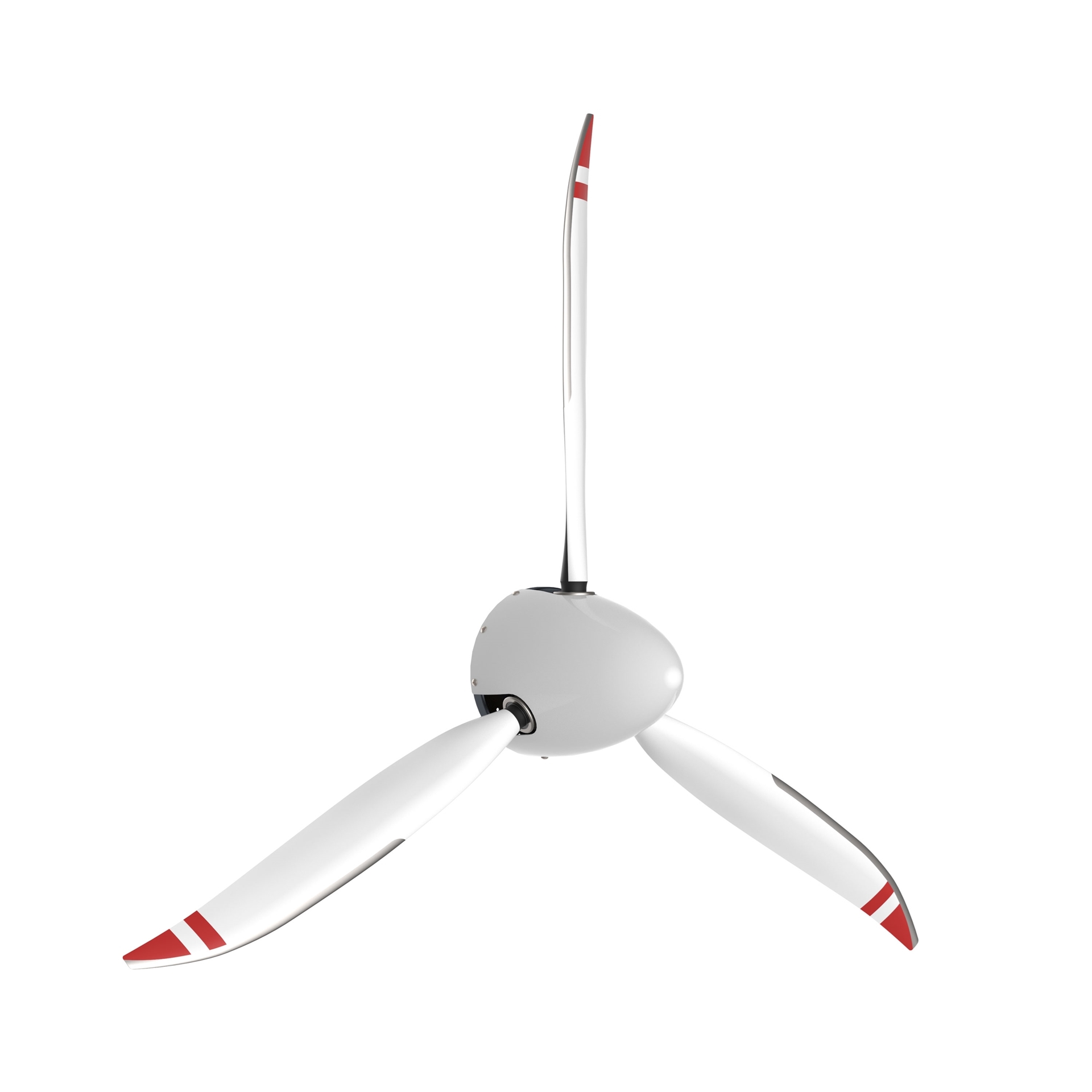

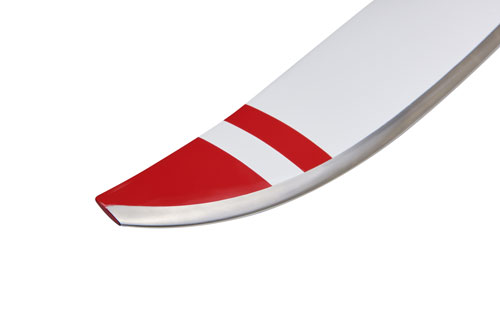

High Aerodynamic Performance Airmaster propellers offer exceptional performance and durability with a wide range of blade options. The high-temperature cure prepreg carbon technology ensures an exceptionally stiff, lightweight blade. This increased strength allows thinner sections and more complex shapes to be formed resulting in higher efficiencies, over a wider speed range. The R66AY blade from Sensenich (USA) is designed for high-speed applications utilizing the Rotax 9 series of engine. Modern aerodynamic design ensuring high cruise speeds 66in diameter suitable for Rotax engines Strong and lightweight hollow carbon construction High gloss white / red tip (or carbon / white tip) finish gives good looks and long life Fully shaped stainless leading edge protecting the leading edge
	Easy installation The installation of thepropellerisverystraight forward and is designed to be accomplished in a short time by any competent layperson. Included is a very comprehensive operators manual and propeller log book. The propeller comes pre-lubricated and statically balanced with all the necessary hardware supplied. Pre-lubricated Pre-balanced Pre- finished wiring Detailed manual Assembly boms

Products specifications

Engine	Rotax 912
Engine	Rotax 912S
Engine	Rotax 912iS
Engine	Rotax 914
Blade Make	Sensenich
Power	Up to 115hp (89.5kW) on gear reduced engines
Maximum Speed	2500rpm
Mounting Flange	Rotax 4in (101.6mm) PCD
Aircraft	BRM
Aircraft	DynAero
Aircraft	Europa
Aircraft	Pulsar
Aircraft	Sportcruiser
Diameter	66in (1676mm)
Aircraft	Blackwing
Aircraft	Blackshape
Aircraft	Stream
Aircraft	Shark
Aircraft	VL-3
Hub	AP332
