B-WWR72B

Whirlwind Blade

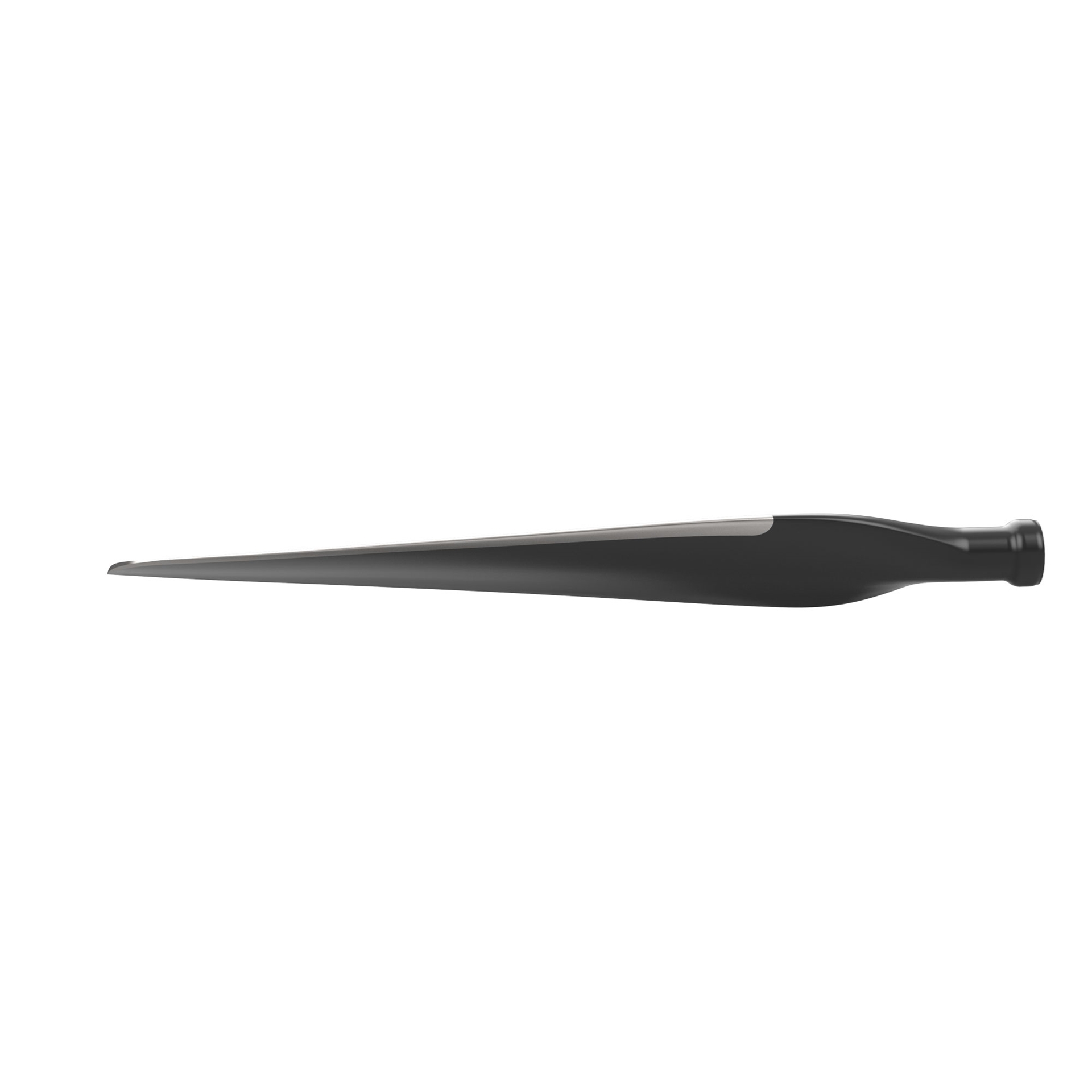

The WWR72B is a fully composite blade made by Whirlwind (USA). The configuration is right hand rotation.



Optimised planform shape and proprietary airfoils make these blades efficient and very quiet in operation.  The carbon fiber construction with X-Core™ ensures a safe, strong propeller with low inertia, suitable for small direct drive engines. The Nickel leading edge provides superior abrasion protection and the blade's high gloss natural carbon fiber finish will satisfy the most discriminating owner.



The WWR72B is specifically designed for geared engines operating at up to 2600 rpms.



Features include

  • 72in (1829mm) diameter
  • ~55hp/blade
  • Designed for geared engines
  • High strength X core construction
  • Fast response from low inertia design
  • Excellent performance from proprietary airfoil designs
  • Hard wearing composite blade construction with inlaid Nickel leading edge protection
Weight 1290g (2.846lbs) per blade
Diameter 72in (1829mm)
Profile  B (cruising)
Rotation Right
Leading Edge Solid inlaid nickel
Finish Black Gloss
Construction  X-Core
Available Hub Types AP4xx
Products specifications
Hub AP421
Hub AP431
Hub AP433
Blade Shank Size 2.0in
Hub AP420
Hub AP421
Hub AP430
Hub AP431
Blade Make Whirlwind
Blade Shank Size 2.0in
Diameter 72in(1829mm)
Maximum Speed 2500rpm
